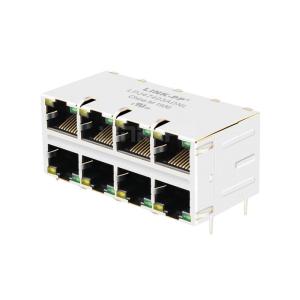

10/100 Base-T Tab Up Yellow/Green LED 2X4 Port Ethernet RJ45 Modular Jack

Product Categories

Shenzhen LINK-PP INT'L Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 10100 BaseT Tab Up YellowGreen LED 2X4 Port Ethernet RJ45 Modular Jack
Brand: LINK-PP
Price: 1 USD

Brand Name : LINK-PP

Model Number : LPJ47403ADNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

LINK-PP P/N : LPJ47403ADNL

Manufacturer : LINK-PP

Speed : 10/100 Base-T

Compatible Brands : LINK-PP

Shield EMI Tabs : Both

Pin Type : THT SOLDER

LED Option : Yellow/Green

Application - LAN : ETHERNET (NON PoE)

Temperature : -40℃ to +85℃

Questions : 1

Reviews : 10

N.W/pcs : 0.051kg

Package : Tray

SPQ : 12pcs

Qty/carton : 216pcs

Carton size : 37*30*30cm

G.W/carton : 11kg

Contact Now

2x4 Port Ethernet RJ45 Jack with 10/100 Base-T Integrated Magnetics, Yellow/Green LED,Tab Up,RoHS

LINK-PP Part Number:	LPJ47403ADNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	2x4 Port	Speed	10/100 Base-T
Latch	Both	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Yellow/Green Led
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	1.015/25.79	Package Length (Inches/mm)	1.116/28.35
Package Width (Inches/mm)	2.330/59.18	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C
